Project Seven
Garden Riddle
Ergonomic Design for Users with Joint pain
-
Oct 2024 - Dec 2024
-
Individual Project
Responsible for research, interaction concept, form development, and final visualization.
-
Laser cutting, Photoshop, Illustrator, etc.
“Enables comfortable gardening for users with physical limitations”
Context Analysis
This project aims to redesign a garden sieve that is ergonomic, efficient,
and durable, for gardeners with limited grip strength or mobility challenges.
Traditional sieves often demand excessive effort and repetitive motions,
causing discomfort and strain.
By prioritizing ease of use, durability, and accessibility, this design will enable
gardeners of all abilities to work with less effort and greater enjoyment.
Design Process
Empathy → Define → Ideation → Prototype → Evaluate

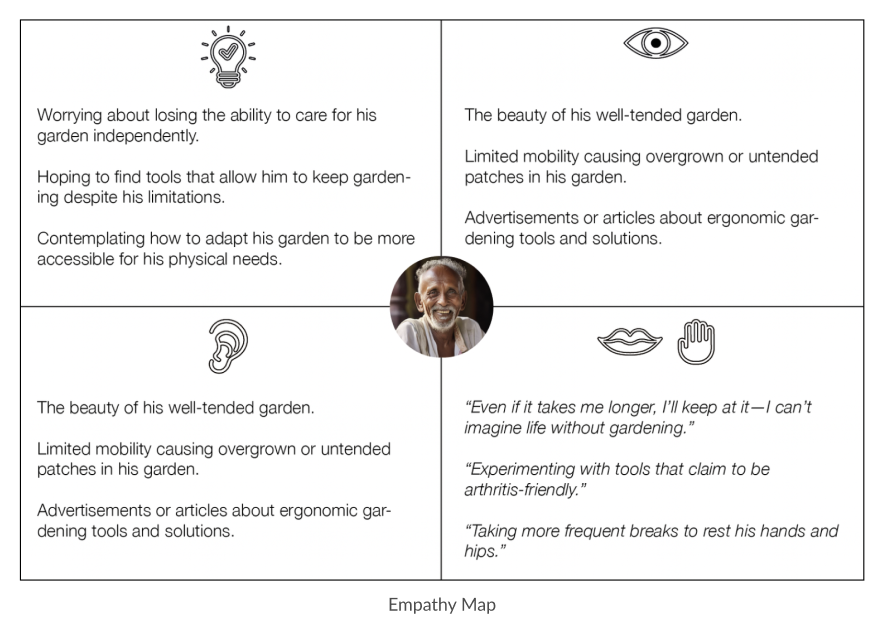

User Persona

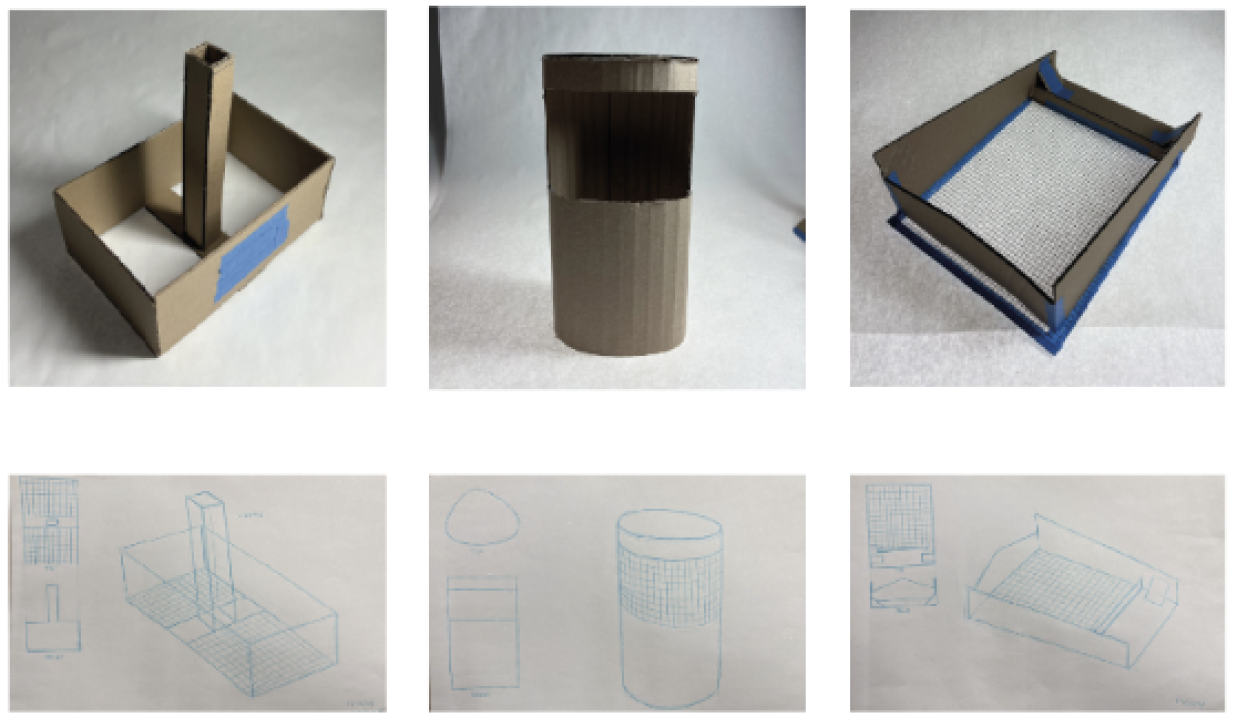

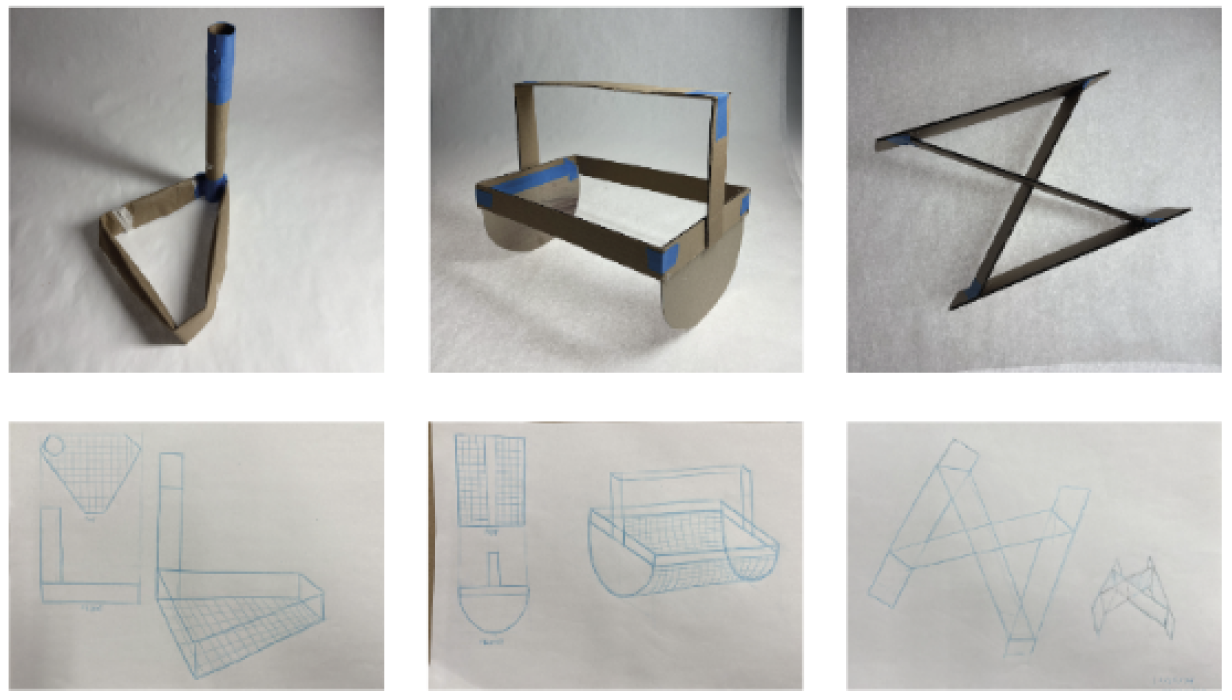

Initial Sketches / Prototypes

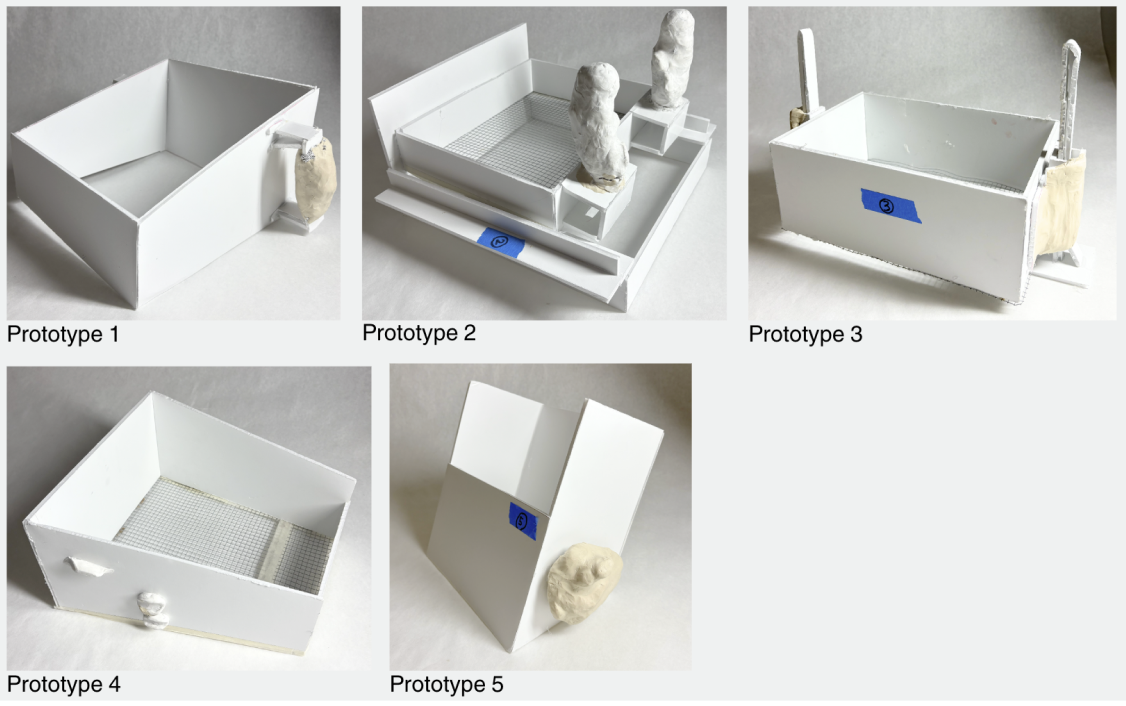

Final Prototypes & User Testing

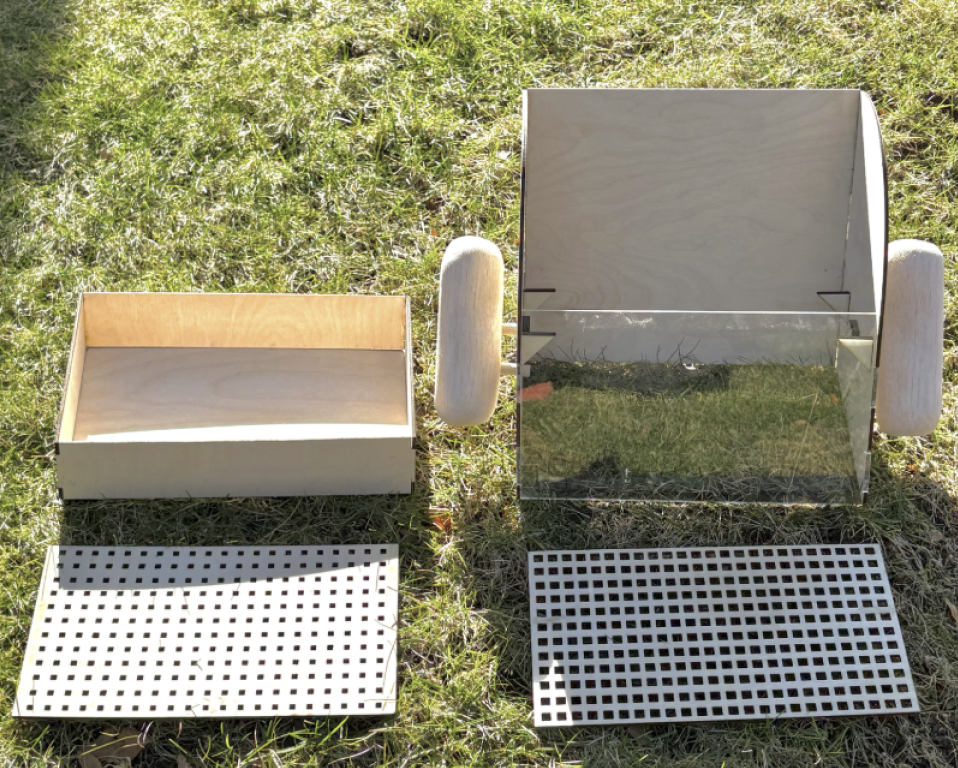

Final Model
“Enables comfortable gardening for users with physical limitations”
Characteristics:
Ergonomic Handles
Interchangeable mesh
Detachable container
Lightweight structure
Materials:
Frame & container:
Baltic birch plywood 1/8”, Acrylic plexiglass Clear 1/8”
Mesh:
Baltic birch plywood 1/8”
Handles:
Balsa wood block

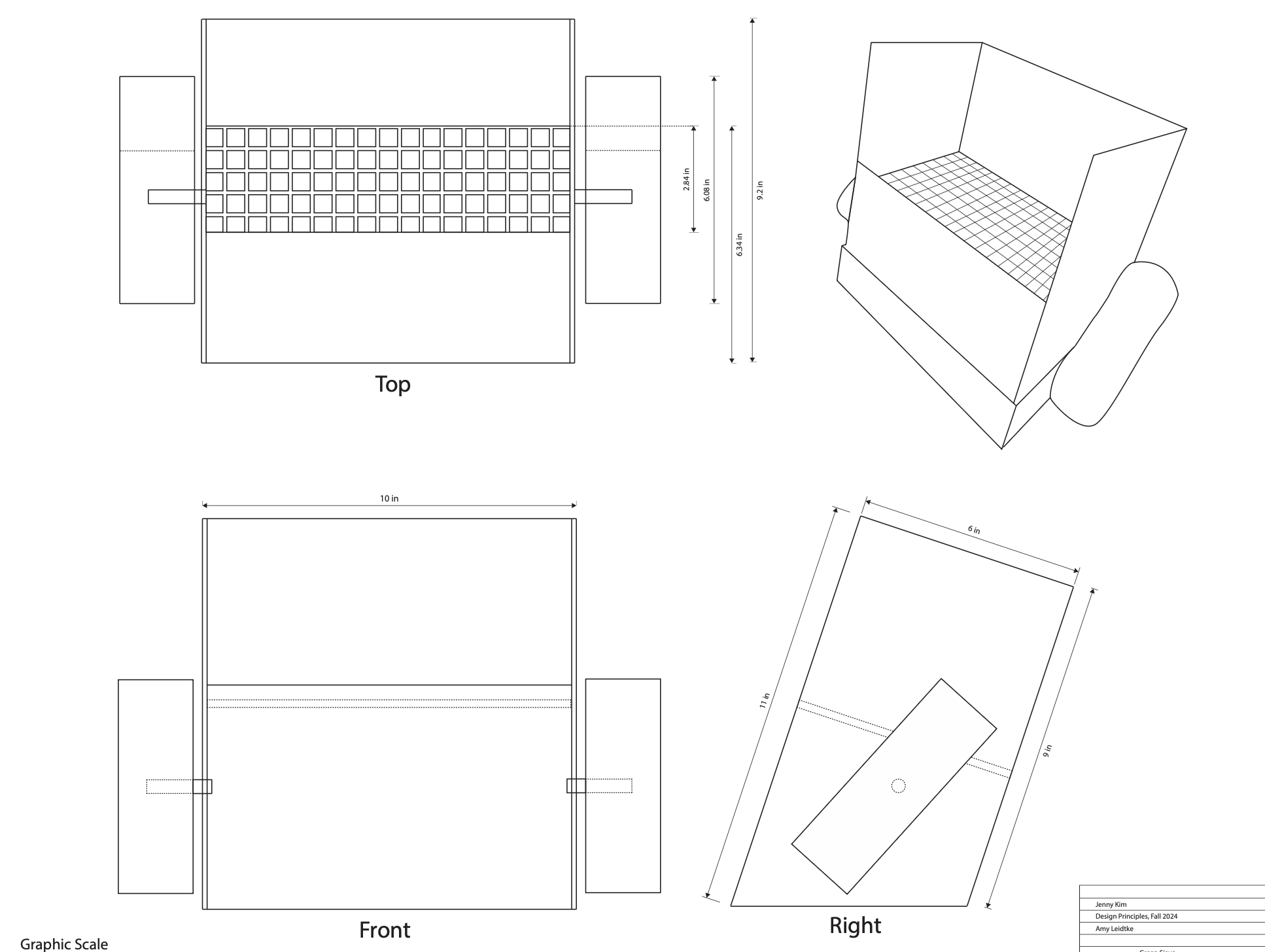

Orthographic View
